High-density black formulation for deeper, richer output across varied materials.
Extended decap time for consistent output and sharp prints during intermittent operation.
Optimized for low-absorption substrates including dense cartons, pharmaceutical boxes,coated paper, and offset stock.
| SUBSTRATES COVERAGE |
| Glossy Paper | Kraft Paper | Coated Paper | Paperboard Pharma Box | Enveloop | Corrugated Board | HD Carton | Wood |
| PRODUCT SPECIFICATION |

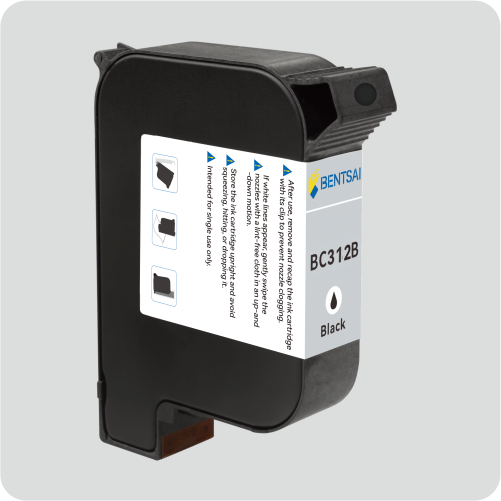

| Part Number | BC312B Cartridge Type : TIJ ink cartridge without the security chip | |||
| Ink Type | Aqueous-based Ink ● Black Colorant Type : Pigment | |||
| Resolution | Up to 600 dpi (recommended 300x300 dpi) | |||
| Max Print Swath | 12.7mm | |||
| Nozzle Count | 300 | |||
| Ink Throw Distance | 2-5mm | |||
| Firing Voltage | 11.0-11.8V | ★ Please conduct test before use, the suitable parameter may be different depending on the printer. | ||
| Firing Pulse Width | 2.0-2.2µs | |||
| Max. Firing Frequency | 12kHv | |||
| Ink Fill level | 42ml | |||
| Average Delivered Ink | 36 ml (Vertical) 31 ml (Horizontal) | |||
| Ink Dry Time | 1-2 seconds (Using a 300x300 dpi horizontal line as an example, with corrugated board as the test material, the actual drying time varies depending on the substrate). | |||
| De-Cap Time | 2 hours and above under normal condition and environment ★ The actual toleration depends on the surrounding temperature and humidity. | |||
| Operation Conditions | 15°C – 35°C；35% – 80% RH | |||
| Shipping/Storage Conditions | 5°C – 40°C ； 20% – 80% RH | |||
| Printhead Cleaning | Wipe the printhead with a non-woven cloth; moisten it with distilled or deionized water if needed. | |||
| Shelf Life | 12 months from ink filled date | |||
ATTENTION:
• Please clean the printhead before installing the ink cartridge.
• Use a lint-free dry cloth to clean the ink cartridge and printhead.
• Do not use a general and water-containing wet cloth, as it may cause nozzle clogging or damage.
• Printing performance may vary based on conditions and environment, please conduct a printing test carefully before use.
• All data here is based on Bentsai laboratory data, not guaranteed.
MAINTANCE AND HANDLING:
• Use a lint-free cloth wipe the printhead nozzle in a single direction from top to bottom.
• If the printhead is dogged, gently wipe it with a lint-free cloth moistened with deionized or distilled water and do not use alcohol or cleaning agents on aqueous ink cartridges.
• Hold the cartridge printhead face down, gently press the printhead on a lint-free doth to let the ink flow out, and then carefully and lightly wipe across the printhead along the edge.
• After use, seal the printhead with the originally attached cartridge clip and store the cartridge with the position of its printhead UP until subsequent use.
SHIPPING AND STORAGE:
• The cartridge should be stored in vacuum sealed pouch until used.
• Please store the cartridge with the printhead facing upwards. If it is stillin the original sealed carton, store it according to the markings.
• Use the cartridge within two weeks of removing it from vacuum sealed pouch for best performance.
• Refer to Safety Data Sheet for more information.
