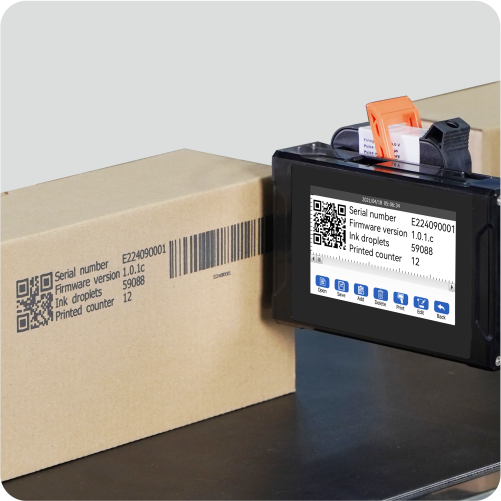

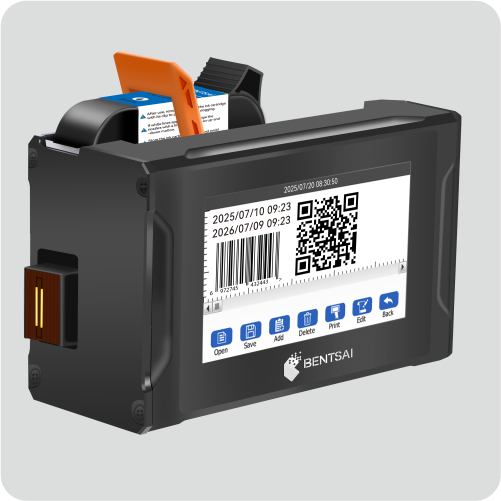

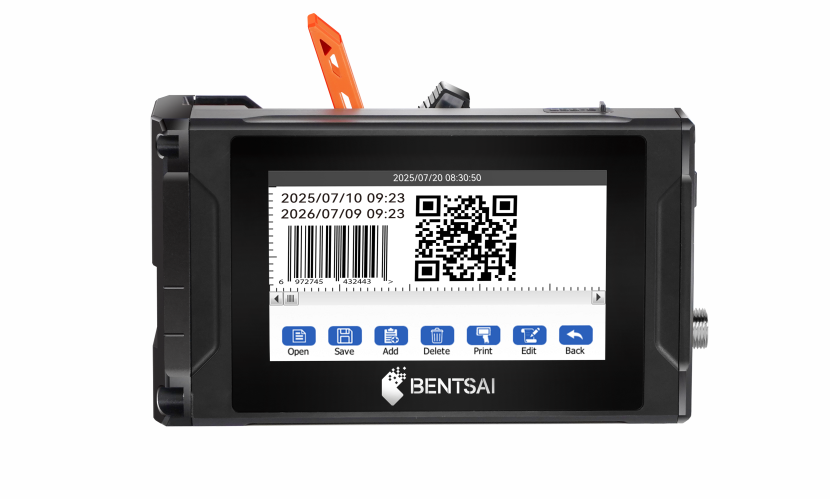

All-in-One Design

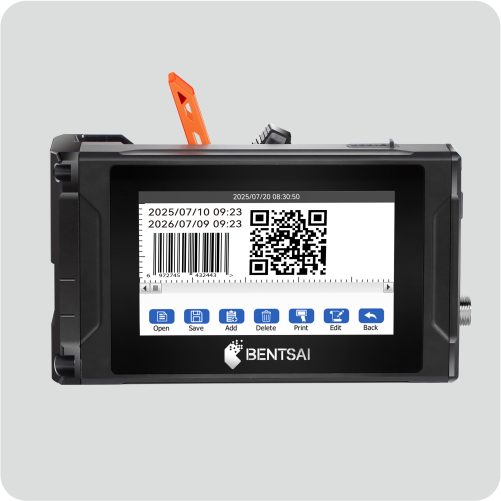

The Bentsai E61P features a compact design and a 4.3-inch touch screen for easy input, editing, and coding of messages.lts user-friendly interface ensures simple operation.

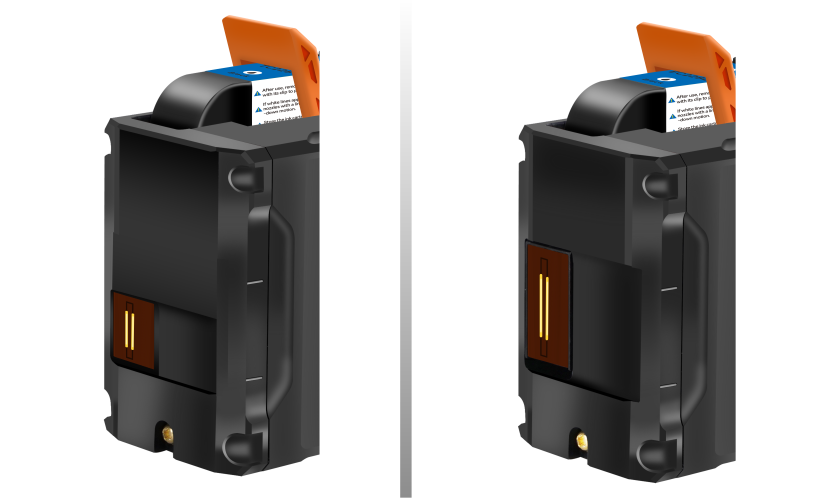

Adaptable for Both 0.5＂ and 1＂ Cartridges

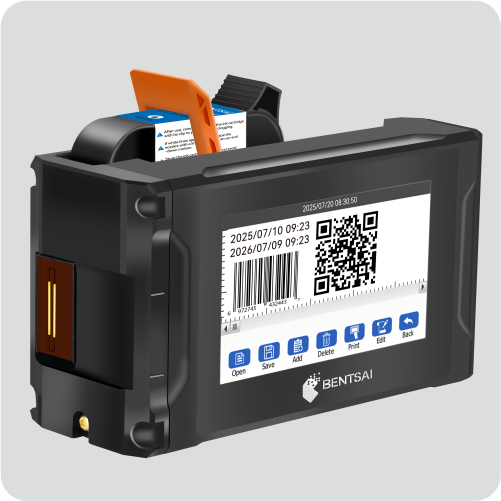

The Bentsai E61P can accommodate both 0.5" and 1" inkjet cartridges. By replacing the printhead plates, it can function as two traditional printers, offering great production flexibility.

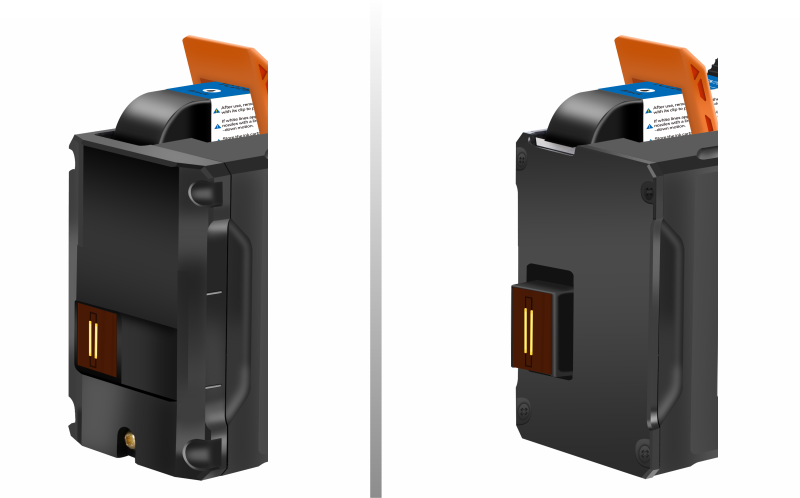

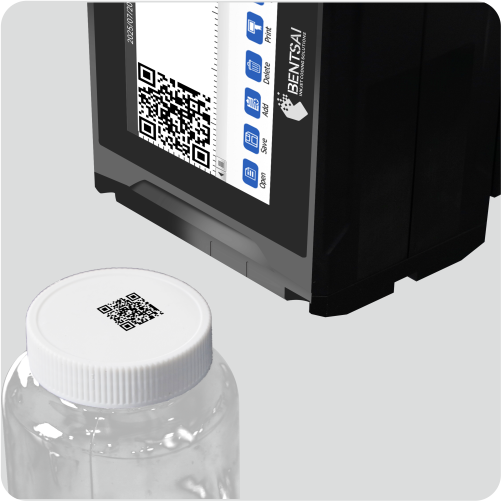

Protruding Printhead for Curved Surfaces
With optional flat printhead plates, the Bentsai E61P's printhead can
extend outward by 7mm. This feature is ideal for coding on curved surfaces like bottle necks and cans.

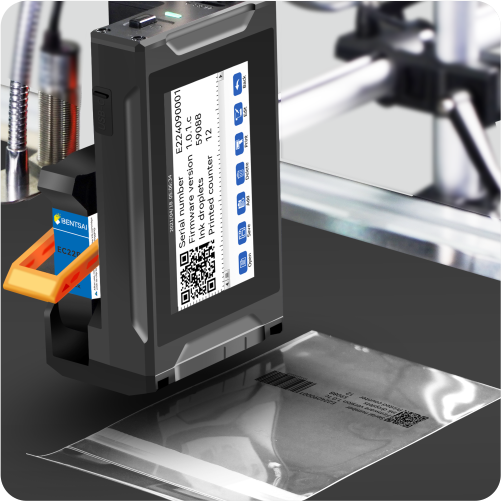

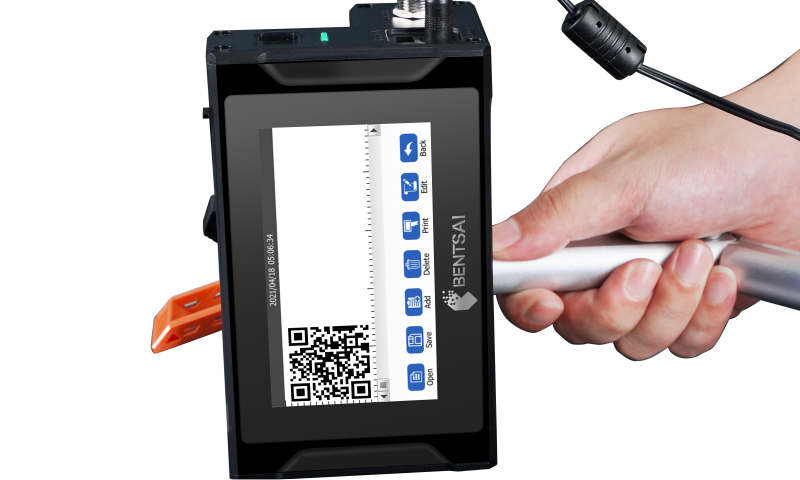

Flexible Rotating Bracket
The Bentsai E61P includes a rotating bracket that simplifies managing printing messages on narrow, hard-to-reach conveyors. Additionally, if the printer is accidentally impacted on the production line, the rotating, bracket can turn to protect the device from damage.
| Product Videos |
| Printer System |
| Display | 4.3＂HD Touch Screen |
| Operation System | Linux System |
| System Languages | English / German / French / Italian / Spanish / Portuguese / Slovenian / Serbo-Croatian / Czech / Bulgarian / Romanian / Polish / Greek / Hungarian / Russian / Ukrainian / Slovak Arabic / Persian / Turkish Chinese / Traditional-Chinese / Japanese / Korean / Hindi / Thai / Vietnamese / Indonesian / Burmese / Hebrew (Available languages vary for different regions) |
| Embedded Memory | 128M |
| Status Alarm | Green: Ready Blue: Printing Red: Alarm |
| Working Environment | Storage: 0℃-45℃ | Working: 5℃-35℃ | Humidity: 10%-80% |
| Application Mode | Inline |

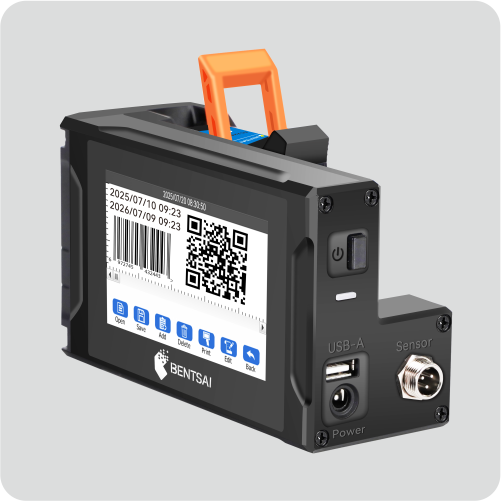

| I/O Ports | USB-A , USB-C，Photoelectric-Sensor |
| External Power Adapter | IN: 100-240V / OUT: DV9V 2A |

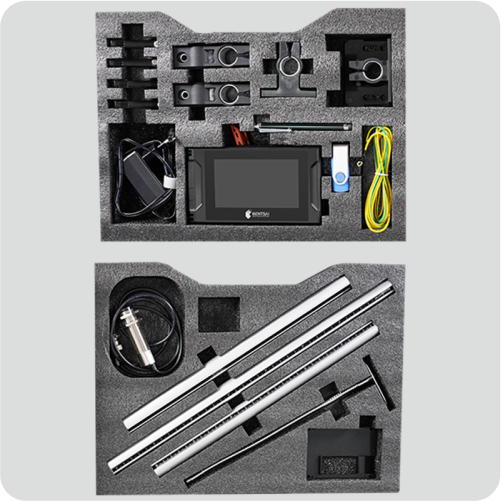

| Accessories | Standard: USB*1，Photosensor*1，Power adapter*1 ,0.5" printhead plate*1, 1" printhead plate*1 Optional: Rotating Bracket, Anti-shock Bracket, 0.5＂flat printhead plate*1, 1＂flat printhead plate*1 |
| Printing Features |
| Gray Level | 1-5 | |
| Message Components | Text, Numbers, lmages, Logo, Barcodes, Dates, Counter, Database etc. | |
| Image Format | JPG, JPEG, PNG,BMP | |
| Barcode Formats | Code 128, Code 39, EAN-8, EAN-13, UPC-A, ITF 2 of 5, ITF-14 | |
| 2D Code Formats | QR Code, QR Code, GS1 DM | |
| Fonts | True type fonts, Dot-matrix fonts | |
| Printable Materials | Water based ink for porous and semi porous substrates: Paper / Corrugated box / Wooden / Fiberboard / Cotton and etc. Solvent based ink for semi porous and non porous substrates: Plastic / Glass / Metal plates / Alu-foils / Cables and etc. | |
| Ink Throw Distance | 2mm-5mm (Distance between nozzle plate and print object) | |
| Ink Cartridges Colors | Water-based Color options: Black, Cyan, Magenta, Yellow, Green Solvent-based Color options: Black, Cyan, Magenta, Yellow, White, Green | |
| Print Height | 2.5mm-12.7mm (1-5 Lines) | 2.5mm-25.4mm (1-10 Linees) |
| Resolution | 600 / 300 dpi | 300 dpi |
| Max Print Size | 12.7mm * 406mm | 25.4mm * 406mm |
| Max Print Speed | 60m / min | 30m / min |
| Product Models |
| Model Name | E61P |
| Printheld | 12.7mm/0.5＂ /25.4mm/1＂ |
| Power Ports | DC 9V/2A |
| I/O Interface | USB, Sensor Port |
| Dimension | 155mm*61mm*115mm |
| Weight | 460g |
| Packaging | 365mm*267mm*135mm | 2520g |
