High-Quality and Versatile Print Capabilities
✅ Up to 600 DPI high-resolution with excellent print clarity for printing on porous, semi-porous, and non-porous substrates.
✅ Apply for various coding and marking types, including fonts, dates, times, numbers, 1D codes, 2D codes, logos, graphics, and more.

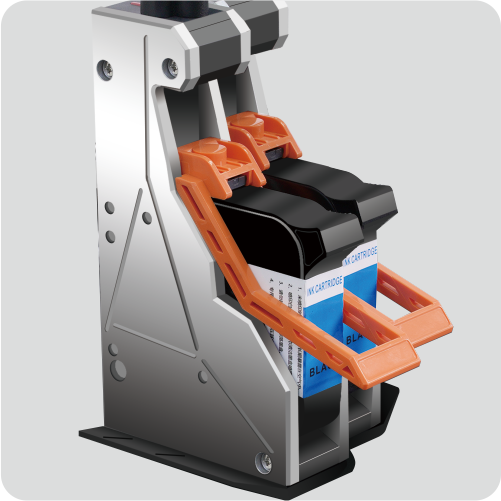

✅ Compatible with 0.5-inch and 1-inch TIJ water-based or solvent-based ink cartridges, allowing for a maximum print height of 50mm.
Easy Operation and virtually No Maintenance, No Downtime

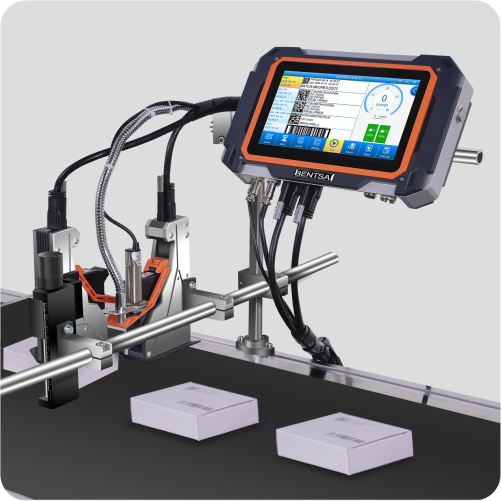

✅ Compact size makes it easy to install on both small and large production lines.
✅ Fast turn-on and intuitive user interface.
✅ Cartridge-based ink and single-time usage, virtually require no professional maintenance.
✅ Cleaning printheads only takes a second, which helps keep your production line running smoothly without downtime.
Flexible, Scalable, and Economy
✅ An embedded photocell sensor with separate delay settings is ideal for single or multi-task print jobs operated by one controller.

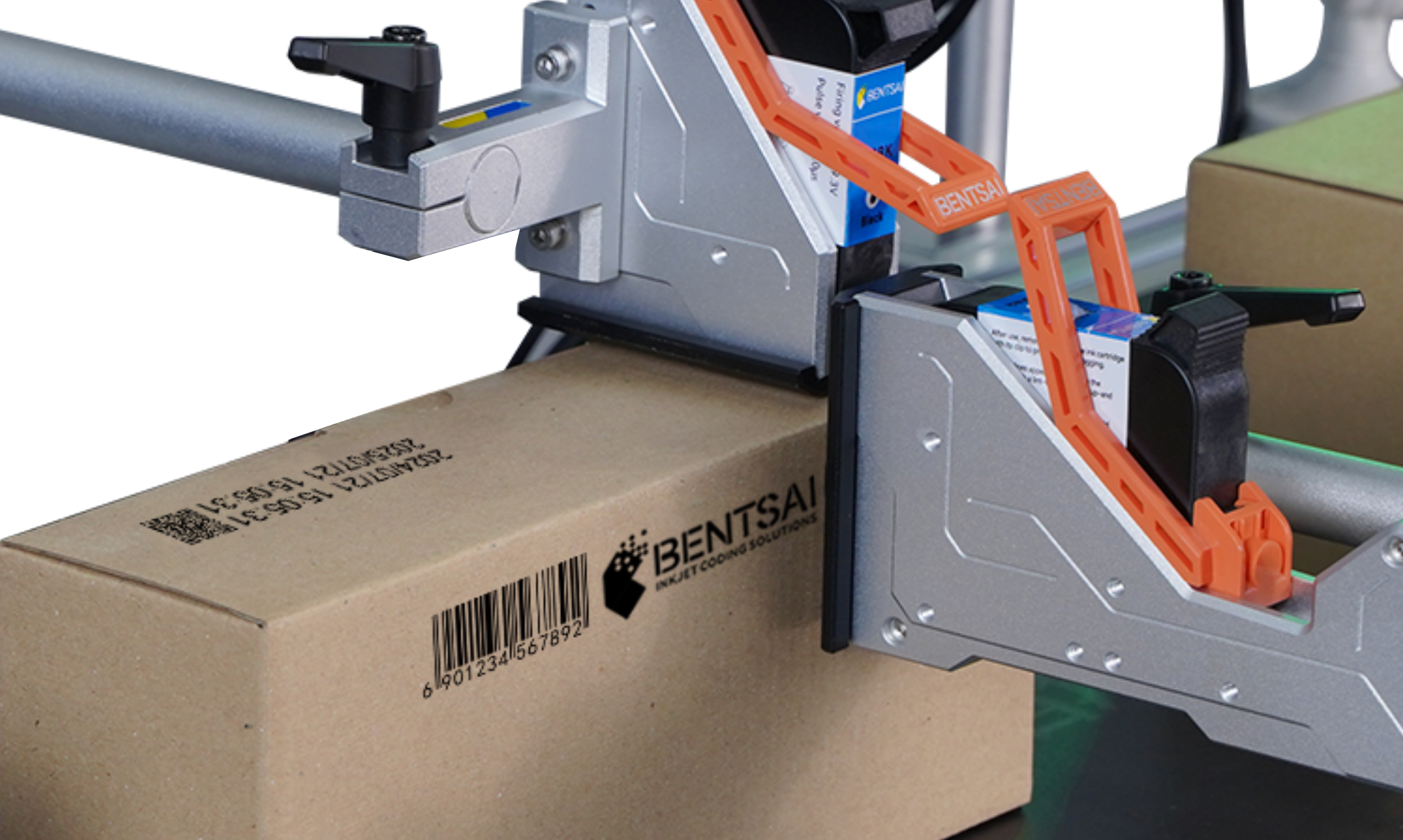

✅ Combine printheads for stitching maximum print height.

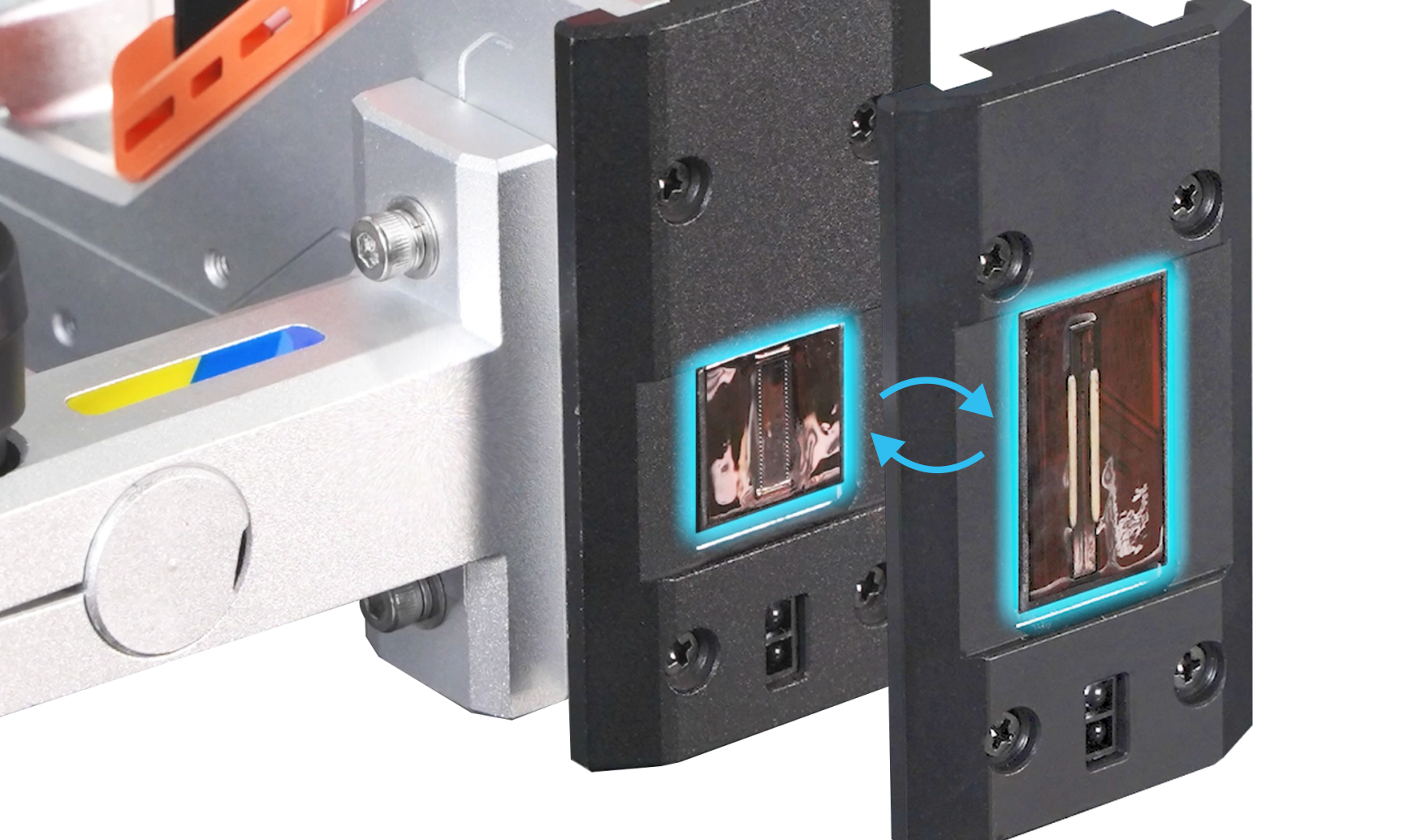

✅ Upgrading from 0.5-inch to 1-inch printhead at no additional cost.
✅ Smart print cost calculator designed for effective cost control with customizable ink-saving options.
Advanced Industrial Coding and Marking Applications

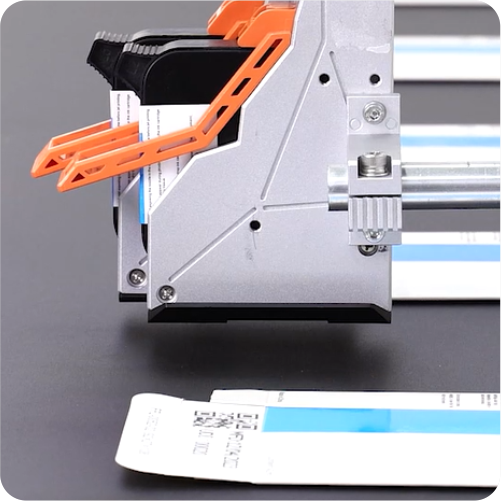

✅ Support for printing traceable 1D barcodes and 2D codes based on GS1, EAN, UPC, ITF, PDF, MaxiCode, QR and more.
✅ Customizable date and time codes, sequential and batch counters.
✅ Static, dynamic, and user-editable variable fields.
✅ The controller’s native API is available for integration into the automation production system.
| Product Videos |
| Printer System |

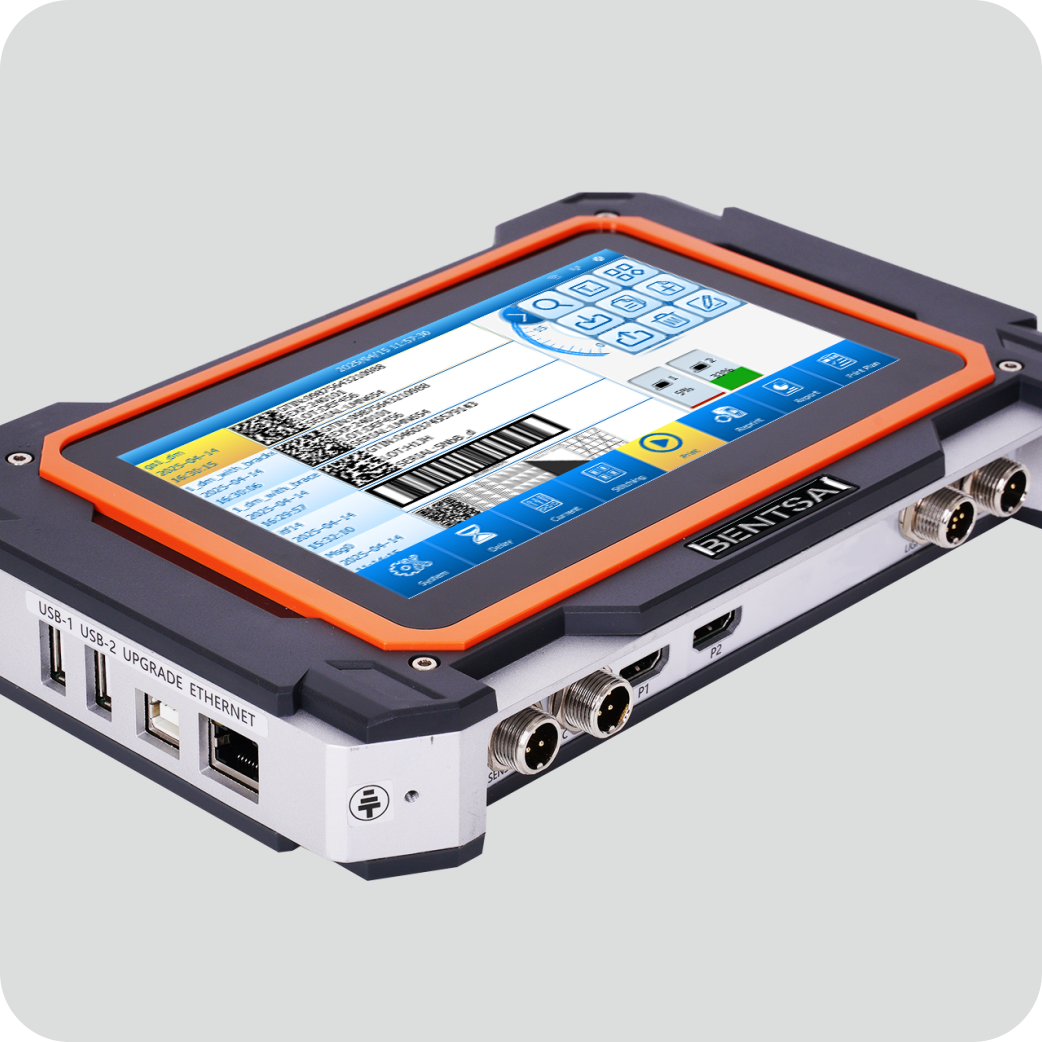

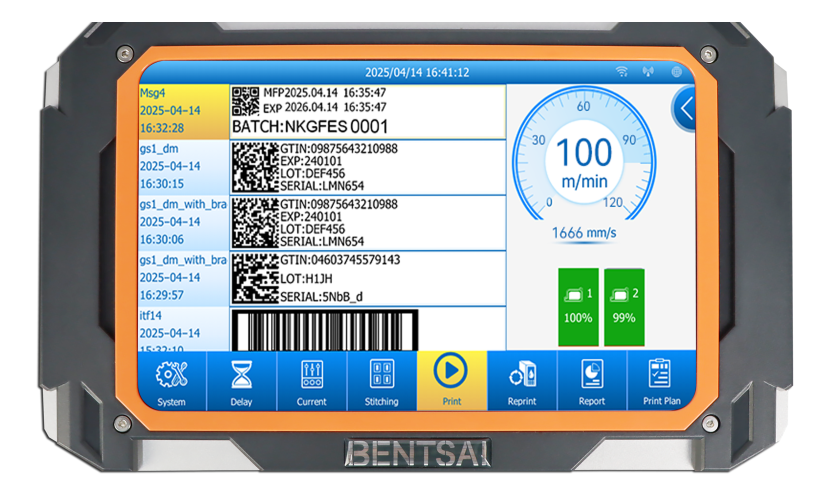

| Display | 7＂HD Touch Screen |
| Operation System | LINUX System |
| System Languages |
English / German / French / Italian / Spanish / Portuguese / Slovenian / Serbo-Croatian / Czech / Bulgarian / Romanian / Polish / Greek / Hungarian / Russian / Ukrainian / Slovak / Arabic / Persian / Turkish / Chinese / Traditional-Chinese / Japanese / Korean / Hindi / Thai / Vietnamese / Indonesian / Burmese / Hebrew (Available languages vary for different regions) |
| Embedded Memory | 8G |
| Status Alarm | Green: Ready | Blue: Printing | Red: Alarm |
| Working Environment | Storage: 0℃-45℃ | Working: 5℃-35℃ | Humidity: 10%-80% |
| Application Mode | INLINE |
| I/O Ports | Ethernet, USB, Photocell, Encoder, Beacon |
| External Power Adapter | IN: 100-240V / OUT: DV24V 4A |
| Accessories | Standard : USB Disk *1, Optical Sensor*1, Power Adapter*1, Printhead plates ( varies on models, see model list below) Optional: Encoder, Beacon, Anti-shock module |
Printing Features |
| Gray Level | 10 Levels: 10%-100% |
| Message Components | Text, Numbers, lmages, Logo, Barcodes, Dates, Counter, Database, Dynamic Data etc. |
| Image Format | JPG, JPEG, PNG,BMP |
| 2D Code Formats | OR Code, Date Matrix, PDF417, Grid Matrix, GS1 DM, GS1 QR, Truncated PDF417, Maxi Code, MicroPDF417 |
| Barcode Formats |
Code 39, Code 128, Code128-B, EAN-8 , EAN-13, UPC-A, UPC-E, ITF 2 of 5 , ITF-14, Code 93, GS1-128, GS1 DataBar Truncated, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Extended, GS1 DataBar Stacked, GS1 DataBar Stacked Omni, GS1 DataBar Expanded Stacked, Matrix 2 of 5, Industrial 2 of 5, lATA 2 of 5, Data Logic 2 of 5, Interleaved 2 of 5 |
| Fonts | True type fonts, Dot-matrix fonts |

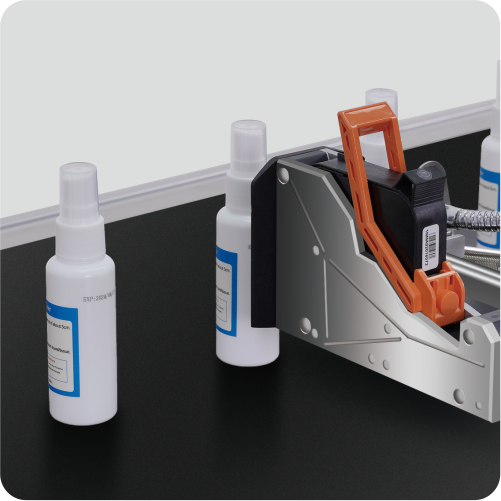

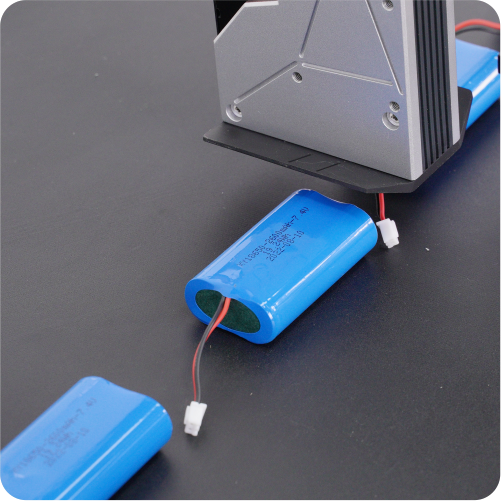

| Printable Materials | Water-based ink for porous and semi-porous substrates: Paper / Corrugated box / Wood / Fiberboard / Textile and etc. Solvent-based ink for semi-porous and non porous substrates: Plastic / Glass / Metal plate / Alu-foil / Cable and etc. |
| Ink Throw Distance | 2mm-5mm (Distance between nozzle plate and print object) |
| Ink Cartridges Colors | Water-based Color options: Black, Cyan, Magenta, Yellow, Green Solvent-based Color options: Black, Cyan, Magenta, Yellow, White, Green |
| Resolution |
X-direction DPI: 75/100/150/200/300/600/1200 Y-direction DPI: 300/600 (0.5＂cartridges) X-direction DPI: 75/100/150/200/300/600/1200 Y-direction DPI: 300 (1＂cartridges) |
| Max Print Height | 12.7mm (1-5 lines) /25.4mm (1-10 lines) /50mm (1-20 lines) /100mm (1-40 lines) |
| Max Print Length | 2100mm |
| Max Print Speed | 0.5＂Printhead: 30m/minute@600dpi 60m/minute@300dpi 120m/minute@75dpi 1＂Printhead: 15m/minute@300dpi 30m/minute@75dpi |
| Product Models |
| Model Name | E62P-1 | E62P-2 |
| Printhead Plates | 12.7mm Single-Plate*1 25.4mm Single-Plate*1 | 12.7mm Single-Plate*2 12.7mm Dual-Plate*1 25.4mm Single-Plate*2 25.4mm Dual-Plate*1 |
| Gross Weight | 5790g | 7850g |
| Packaging Size | Carton 1: 465mm*172mm*365mm | Carton 1: 470mm*172mm*365mm Carton 2: 360mm*100mm*240mm |
